Super Long Range Security Cameras

  ◆ Sony 1/2.9” 2 Mega pixels 1920(H)x1080(V)
  ★ Sony 1/2.9” 5 Mega Pixels 2592(H)x1944(V)
  ◎ Ultra Low Light、Starlight Night Vision
  ◎ IR lighting variable according to installation environment
  ◎ Digital Wide Dynamic Range; Motion Detection,
       Privacy Mask, Defog
  ◎ Enhanced 2D / 3D Noise Reduction

  ◎ Variable Electronic Shutter Speed
  ◎ UTC control OSD & Motorized Zoom
  ◎ External Lens adjustment and OSD setup
  ◎ Weather proof IP-66 Rated
  ◎ Available Lens:
   Varifocal 5-50mm / 5-100mm
   Motorized Optical Zoom 10x / 20x




Super Long Range

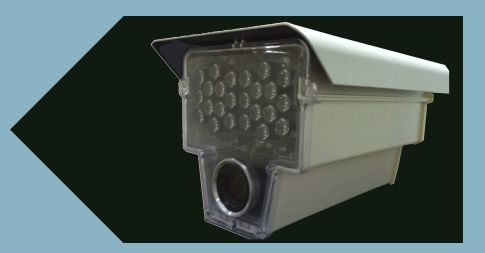

     AM-J3 Series
◎ Built in 24 Super Output IR LEDs
◎ IR range up to 250 meter
◎ 2 separated IR units on variable field of view
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 220 (H) * 250 (W) * 380 (D) mm
(Details...)



Super Long Range

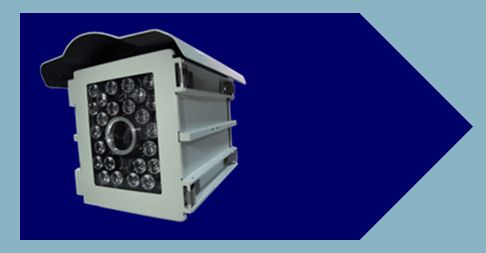

    AM-J2 Series
◎ Built in 24 Super Output IR LEDs
◎ IR range up to 350 meter
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 230 (H) * 220 (W) * 350 (D) mm

(Details...)




Super Long Range

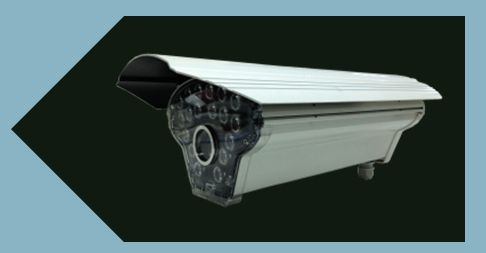

  AM-J1 Series
◎ Built in 18 Super Output IR LEDs
◎ IR range up to 200 meter
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 148 (H) * 144 (W) * 380 (D) mm
(Details...)



Super Long Range

    AM-ID Series
◎ Built in 25 high output IR LEDs
◎ IR range up to 180 meter
◎ Lens adjustment and OSD setup through hinged lid
Dimension: 155 (H) * 150 (W) * 440 (D) mm

(Details...)




Super Long Range

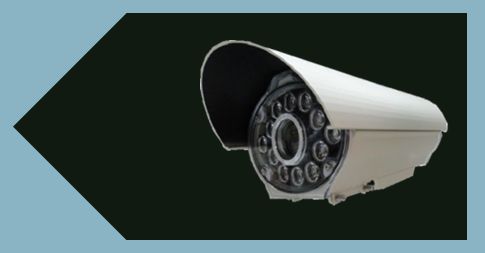

  AM-I4 Series
◎ Built in 12 Super Output IR LEDs
◎ IR range up to 150 meter
◎ Cable Management
◎ Lens adjustment and OSD setup through trap door
Dimension: 160 (H) * 220 (W) * 380 (D) mm
(Details...)





Super Long Range

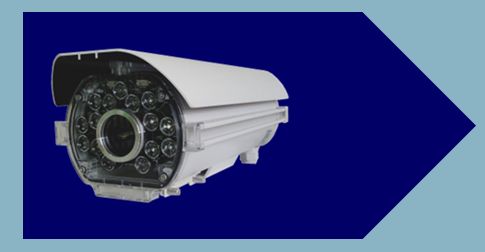

    AM-I6 Series
◎ Built in 15 high output IR LEDs
◎ IR range up to 120 meter
◎ Lens adjustment and OSD setup through trap door
Dimension: 122 (H) * 150 (W) * 380 (D) mm

(Details...)





Super Long Range


AM-I9 Series
◎ Built in 15 high output Laser IR LEDs ;
◎ IR range up to 120 meter
◎ Lens adjustment and OSD setup through side hinged lid
Dimension: 110 (H) *198 (W) * 310 (D)




General Specifications

Effective Pixels

1984 (H) × 1105 (V) approx. 2.19 Mega pixels

2688 (H) × 1944 (V) approx. 5 Mega pixels

Resolution

1920 * 1080P @ 30fps/25fps

2592 * 1944P @ 30fps/25fps

Lens

3 Mega Pixels

4 Mega Pixels

Video Output

BNC Connector Composite video 75 ohm

Gamma Correction

0.45.......1.0 ; User Switched through UTC / OSD

Minimum Illumination

0.1 Lux ; IR Activated 0.001 Lux.

S/N Ratio

More than 62dB (AGC Off)

Shutter Speed

Auto / Variable Switched by UTC / OSD

Backlight Compensation

Auto

Gain Control

Setting through OSD menu

Image Correction

Image Reverse (Mirror) ; Sense up ; Slow Shutter

Power Input

12 V DC / 24 V AC / Universal 100 V ~ 240 V AC

Ambient

-10 ~ 50℃ (14~122F) /30 ~ 90 ﹪RH
